Shengrong foundry iron casting process
SHENGRONG is a professional casting company focusing on casting and processing of cast iron and cast steel parts, mainly in No-bake resin sand molding, green sand molding, lost foam casting, shell-mold and investment casting process.
No-bake resin sand molding
No-brake resin sand molding is a sand molding process where synthetic liquid resin is mixed with the sand, and the mixture hardens and cools at room temperature. The casting is formed by pouring liquid metal into the resulting mold cavity after the sand mixture is fully cured and the mold halves are assembled together. This process takes place in a normal atmosphere without adding heat to the mold prior to the pour.
- SHENGRONG provides a full range of high-quality sand casting solutions for ductile iron, gray iron, stainless steel, alloy steel and other materials.
SHENGRONG consists of two production molding areas, providing flexible and high capacity production. piece weight from 5 kg to 10,000 kg, produces casting volumes from prototype to 20,000 tons per year.
Green sand casting
Green sand molding process is mainly composed of raw sand, clay, coal powder and water. In the process of molding, sand is formed under the action of external forces and reaches a certain degree of compactness， it is able to volume-produce of castings efficiently while maintaining high-quality standards.
SHENGRONG provides a full range of high-quality sand casting solutions for ductile iron, gray iron. castings range from 0.5 kg to 60 kg, Molds are produced using 780 x 670 x 250/250 automatic green sand molding machines. We run three molding and pouring lines.
Our highly flexible production facilities in green sand molding allow us to produce casting volumes from prototype to 30,000 tons per year.
Lost foam casting
Lost foam casting is a type of evaporative-pattern casting process that is similar to investment casting except foam is used for the pattern instead of wax.
This casting process is advantageous for very complex castings that would regularly require cores. It is also dimensionally accurate, maintains an excellent surface finish, requires no draft, and has no parting lines so no flash is formed.
SHENGRONG provides a full range of high-quality sand casting solutions for ductile iron, gray iron, stainless steel, alloy steel and other materials.highly flexible production facilities of lost foam casting allow us to produce casting volumes from prototype to 20,000 tons per year
Our castings range from 1 kg to 1,000 kg, Maximum size of the flask is 1100 x 1100 x 1000 . We run two molding and pouring lines.
Investment casting
Investment casting surrounds the pattern with refractory material to make a mold, and a molten metal is cast into the mold. Due to the hardness of refractory materials used, investment casting can produce products with good surface qualities, which can reduce the need for machine processes.
The castings produced by the investment casting process have high surface precision and can adapt to various complex shapes. When customers have special requirements for dimensional accuracy, surface smoothness and part structure design of small and medium-sized parts, investment casting is the best choice
SHENGRONG provides a full range of high-quality sand casting solutions for ductile iron, gray iron, stainless steel, alloy steel and other materials. We use silica sol investment casting process,have two molding and pouring lines , castings range from 0.2 kg to 100 kg, Maximum size of the mold is 600 x 500 x 500
Our highly flexible production facilities of investment casting allow us to produce casting volumes from prototype to 2,000 tons per year
How to work with us
Get Quote with Us
Offer us 2D or 3D casting and machining drawing
Casting mold design
Make samples and send to you for checking
Casting production
Make bulk casting parts production and machining
Shipping
Delivery products to your sea port
About Shengrong casting foundry

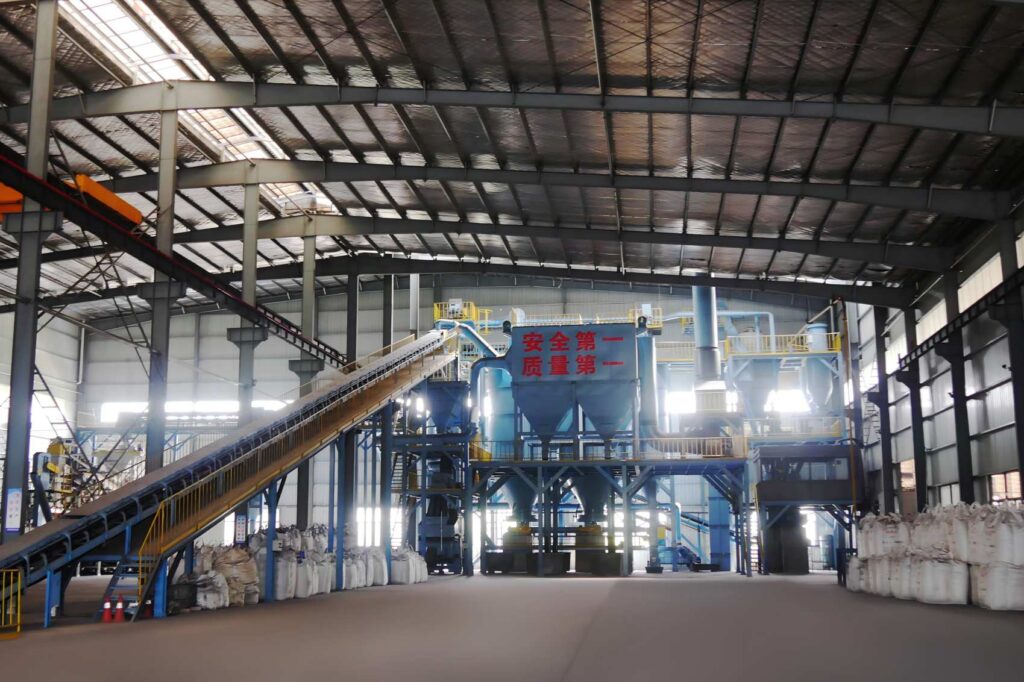

Jiangsu Shengrong High end Equipment Manufacturing Industry Co., Ltd is a professional iron casting foundry about 26,000 square meters, Investment of 80 million yuan,include intermediate frequency furnace, new east Seoul horizontal line, cast star horizontal line, micro crystal automatic casting machine, 40T mixer and 20T mixer, core-making machine, shot blasting machine, machining center, inclined rail lathe, slot machine, vertical lathe, flat rail lathe and other equipment.Testing equipment:spectrometer, tensile testing machine, hardness tester, etc., and supporting chemical testing laboratories. Mainly engaged in: mechanical parts, auto parts, industrial pump parts, bearings and transmission parts manufacturing. Company’s main business: QT450-12, 500-7, 600-3 ball mill castings and HT250, HT300 gray iron castings and cast steel, stainless steel and other business, with the increase of business volume, the production is not only to meet the main business, while the product after the process of product processing business development, so that enterprises diversified production. Now the company has more than 100 employees, including a professional management team and new product development.
Casting Foundry Services
Gray iron
Gray cast iron used in many applications:Pump housings,Valve bodies,Electrical boxes,Decorative castings ,Disc brake rotors, Counterweight.Material Grade: HT200/250/300/350
Ductile iron
Also called spheroidal or nodular iron, commonly used in high-strength and ductility applications, such as pipes, automotive parts, and machinery parts, The grade number: QT400-700
Stainless Steel
Widely used in many industries because of temperature, corrosion resistance, good wear., Used in energy, automobile,shipbuilding, food and beverage industry.

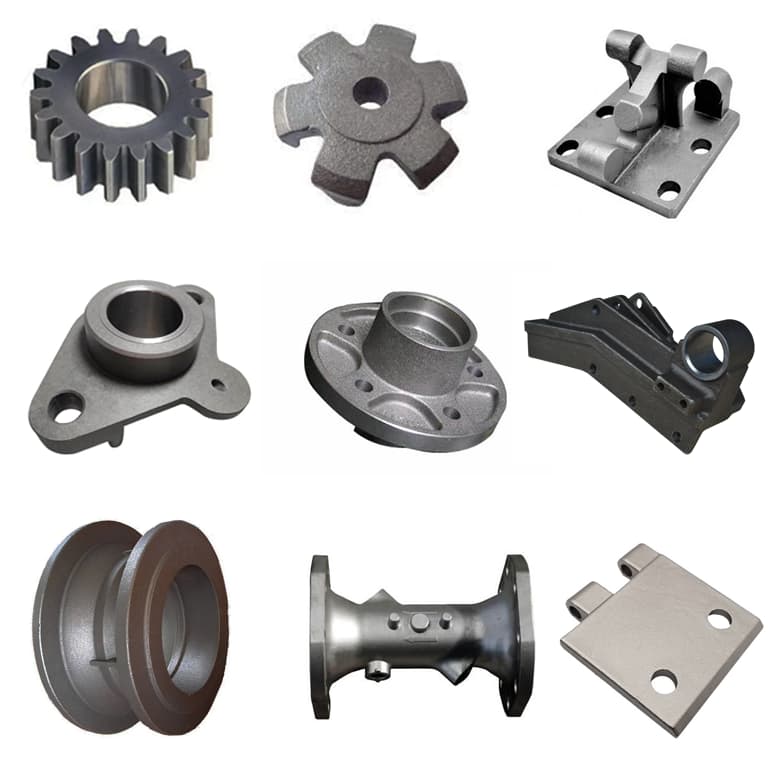

Carbon Steel
High strength, good toughness, high wear resistance, Used in heavy machinery, automobile manufacturing, metallurgical equipment, shipbuilding and building structures.
Casting Parts Application
Iron castings with certain shapes, sizes and properties, it is made by customers requirement. It is formed by pouring molten iron into prefabricated molds and cooling. They are widely used in machinery manufacturing, automobile industry, railways, ships, agricultural machinery, construction engineering and other fields. They main type of iron are gray cast iron and ductile cast iron, grade number is HT250,HT300, QT400-700.
