GGG60 represents a high-strength ductile iron material that combines exceptional tensile strength with controlled ductility for demanding engineering applications. Understanding GGG60 chemical composition, GGG60 material equivalent grades, and GGG60 mechanical properties enables engineers to optimize component design and manufacturing processes. This comprehensive guide explores the GGG60 material specification, composition details, and practical applications that make it a reliable choice for automotive components, heavy machinery, and high-stress industrial equipment.

Industry professionals value GGG60 material for several compelling reasons:

• Minimum tensile strength of 600 MPa provides superior load-bearing capacity for high-stress applications
• Excellent strength-to-weight ratio reduces component mass while maintaining structural integrity
• Superior wear resistance compared to lower-grade ductile irons extends service life in abrasive conditions
• Good machinability in as-cast condition reduces manufacturing costs despite higher strength levels
• Proven reliability across diverse industries including automotive, mining equipment, and hydraulic systems
• Cost-effective alternative to steel forgings for complex geometries requiring high strength
• Surface hardening capability enhances wear resistance for critical applications

Engineers who understand the GGG60 composition, GGG60 material properties, and GGG60 material equivalent grades can select appropriate specifications and achieve optimal manufacturing economy.

Key Takeaways

• GGG60 delivers minimum 600 MPa tensile strength with 3% elongation for high-strength applications
• The GGG60 chemical composition includes 2.5-3.6% carbon with controlled magnesium for nodularization
• International GGG60 material equivalent grades include QT600-3 (China), FCD600 (Japan), and ASTM A536 80-60-03 (USA)
• GGG60 mechanical properties include 180-270 HB hardness with excellent wear resistance
• The spheroidal graphite structure provides strength superior to lower-grade ductile irons while maintaining castability
• Applications include gear wheels, crankshafts, heavy-duty machinery components, hydraulic cylinders, and mining equipment
• Professional ductile iron casting foundries with ISO certification ensure consistent GGG60 material properties
• The GGG60 material specification follows EN 1563 standard requirements for production and testing

What Is GGG60 Material?

GGG60 material is a high-strength ductile iron grade with minimum 600 MPa tensile strength, characterized by spheroidal graphite structure that delivers superior mechanical properties for demanding engineering applications.

Material Classification

GGG60 follows the German designation system established by DIN 1693 for ductile iron materials, now harmonized with European standard EN 1563 as EN-GJS-600-3. The nomenclature breaks down into specific technical indicators defining material characteristics. “GGG” represents “Gusseisen mit Kugelgraphit” (German for spheroidal graphite cast iron), distinguishing it from gray iron which uses “GG” designation. The number “60” indicates minimum tensile strength classification of 600 megapascals measured on standard test bars.

This standardized designation system helps engineers and procurement specialists quickly identify GGG60 material properties without consulting detailed specification documents. The naming convention eliminates confusion when sourcing materials internationally. Manufacturers reference the same GGG60 composition and performance characteristics regardless of geographic location or supplier.

The GGG60 cast iron material also carries alternative designations in various documentation systems. These alternative designations appear on material certificates and technical documentation. Understanding multiple designation formats facilitates material verification during procurement and quality control processes.

Microstructure Characteristics

The distinctive performance characteristics of GGG60 material stem from its carefully developed microstructure during solidification and magnesium treatment. Molten iron containing the appropriate GGG60 chemical composition receives magnesium treatment that causes graphite to precipitate in spheroidal (nodular) form throughout the metallic matrix. These graphite nodules distribute uniformly, creating the ductile behavior that distinguishes this material from gray cast iron.

The metallic matrix surrounding graphite nodules consists predominantly of pearlitic structure in GGG60 material. Pearlite provides excellent strength and wear resistance, contributing to the material’s 600 MPa minimum tensile strength requirement. The predominantly pearlitic matrix with some ferrite determines the final strength-hardness combination within the GGG60 mechanical properties range.

Microstructure Component	Typical Content	Contribution to Properties
Spheroidal Graphite	8-12% by volume	Strength, machinability, wear resistance
Pearlite	80-95%	High strength, hardness, wear resistance
Ferrite	5-20%	Limited ductility, toughness
Nodule Count	150-350/mm²	Property uniformity, mechanical performance

The graphite nodules act as less severe stress concentrators compared to flakes in gray iron, which explains the material’s superior strength and toughness. The rounded nodule geometry allows controlled stress distribution around graphite particles without immediate crack initiation. This characteristic provides significant advantages in high-load applications.

The predominantly pearlitic matrix delivers exceptional tensile strength and wear resistance while maintaining reasonable toughness. This combination makes GGG60 material properties particularly valuable for applications requiring both high strength and wear resistance, such as gear wheels, crankshafts, heavy-duty machinery components, and mining equipment. Research demonstrates that pearlite content directly correlates with strength enhancement in ductile irons.

Key Performance Attributes

GGG60 excels in applications where its unique combination of high strength and wear resistance provides optimal performance. The GGG60 material demonstrates excellent compressive strength due to its predominantly pearlitic structure and spheroidal graphite. Components manufactured from GGG60 material withstand heavy loads and resist wear better than lower-grade ductile irons.

Strength represents the most distinctive advantage of GGG60 compared to GGG40 or GGG50 materials. The GGG60 mechanical properties include 600 MPa minimum tensile strength, approximately 33% higher than GGG40. This strength enables load-bearing in demanding applications while maintaining reasonable ductility for shock absorption.

Machinability of GGG60 material remains reasonable despite higher hardness compared to lower-grade ductile irons. The spheroidal graphite structure creates favorable chip formation during cutting operations, though requiring carbide tooling for optimal productivity. Manufacturing operations achieve good results when machining ductile iron components with appropriate cutting parameters.

Wear resistance of GGG60 surpasses lower-grade ductile irons due to higher pearlite content and increased hardness. Applications involving abrasive conditions or sliding contact benefit from the material’s superior wear characteristics. Surface hardening treatments further enhance wear resistance when required for extreme conditions.

GGG60 Chemical Composition

The GGG60 chemical composition includes 2.5-3.6% carbon, 1.8-2.8% silicon, and 0.3-0.7% manganese, with critical residual magnesium 0.02-0.05% ensuring spheroidal graphite formation for superior mechanical properties.

Understanding GGG60 chemical composition provides critical insight into material behavior during casting and service performance. The GGG60 composition includes carefully balanced elements that control graphite nodularization, matrix structure, and mechanical properties. Each element in the GGG60 chemical composition serves specific purposes in achieving desired casting characteristics and performance outcomes.

Primary Alloying Elements

Carbon (C): 2.5% to 3.6%

Carbon content directly determines graphite quantity in the GGG60 material. The carbon concentration enables good casting fluidity, allowing complex geometries to fill completely during pouring. During solidification, carbon precipitates as spheroidal graphite nodules when magnesium treatment and proper inoculation promote nodular formation.

The GGG60 chemical composition specifies lower carbon content compared to GGG40 (3.5-4.0%), optimizing for strength rather than maximum graphitization. The reduced carbon creates less graphite volume, allowing higher pearlite content in the matrix structure. This balance supports the 600 MPa tensile strength requirement.

Foundries monitor carbon content closely during melting operations. Spectrographic analysis verifies carbon levels before magnesium treatment. The carbon equivalent (CE = %C + %Si/3 + %P/3) typically ranges from 3.9 to 4.3 for optimal GGG60 material properties, lower than softer grades.

Silicon (Si): 1.8% to 2.8%

Silicon acts as a graphitizing element promoting spheroidal graphite formation in ductile iron production. The silicon range in GGG60 chemical composition balances graphitization with pearlite formation, maintaining adequate strength. Moderate silicon content within specification promotes pearlitic matrix structure, improving strength and wear resistance.

Silicon also improves casting fluidity and reduces shrinkage tendencies, enhancing casting soundness. The silicon level influences the ferrite-to-pearlite ratio in the final microstructure, directly affecting GGG60 mechanical properties. Modern foundries optimize silicon content based on component section thickness and desired matrix balance.

Silicon measurement requires accurate spectroscopic analysis during production. The combined effect of carbon and silicon determines nodule formation tendency and final mechanical properties. Foundries use carbon equivalent calculations to predict material behavior and control production consistency.

Manganese (Mn): 0.3% to 0.7%

Manganese in GGG60 composition contributes to pearlite formation and strength enhancement. The manganese content promotes pearlite stabilization, increasing strength and hardness while reducing elongation. Controlled manganese addition strengthens the matrix, supporting the high tensile strength characteristic of GGG60 material.

Manganese also stabilizes carbides and influences hardenability. The manganese range maintains strength while providing the predominantly pearlitic structure required for 600 MPa tensile strength. Higher manganese content in GGG60 compared to softer grades promotes pearlite formation enhancing strength and wear resistance.

Magnesium (Mg): 0.02% to 0.05% (residual)

Magnesium represents the critical element that transforms gray iron into ductile iron. Magnesium treatment modifies graphite morphology from flakes to spheroids, fundamentally changing mechanical properties. The GGG60 chemical composition requires residual magnesium (after treatment) to maintain nodular graphite structure.

Foundries add magnesium through various treatment methods including ladle treatment, tundish methods, or sandwich processes. Treatment additions typically use 0.5-1.0% magnesium-containing alloys (commonly ferrosilicon-magnesium), with residual content measuring 0.030-0.050% after violent reaction and vapor loss.

Insufficient residual magnesium results in flake or vermicular graphite reducing strength and ductility. Excessive magnesium creates processing difficulties including violent reactions, excessive dross formation, and potential carbide promotion. Precise magnesium control remains critical for consistent GGG60 material properties.

Impurity Elements

Sulfur (S): 0.025% (maximum)

Sulfur content in GGG60 chemical composition requires strict control during production. Sulfur interferes with nodularization by reacting with magnesium, consuming magnesium needed for graphite spheroidization. Each 0.01% sulfur consumes approximately 0.015% magnesium during treatment.

The GGG60 composition allows very low sulfur content ensuring efficient magnesium utilization. Foundries select raw materials including pig iron, steel scrap, and returns based on sulfur content. Desulfurization treatments before magnesium addition reduce sulfur to acceptable levels, improving treatment efficiency.

Maintaining low sulfur improves magnesium treatment efficiency and nodule quality. Lower sulfur enables more consistent GGG60 mechanical properties with reduced magnesium consumption. Modern ductile iron foundries target sulfur content below 0.020% for optimal results.

Phosphorus (P): 0.08% (maximum)

Phosphorus creates brittleness in ductile iron by forming iron-iron phosphide eutectic (steadite) at cell boundaries. The phosphorus limit in GGG60 composition prevents excessive steadite formation that would reduce impact resistance. However, moderate phosphorus improves casting fluidity for thin sections.

The specified maximum balances improved castability against potential brittleness. Components requiring maximum toughness should minimize phosphorus content. The GGG60 specification allows slightly higher phosphorus than softer grades given the reduced ductility requirements.

Raw material selection controls phosphorus input. Pig iron typically contains higher phosphorus than steel scrap. Foundries blend charge materials achieving target phosphorus levels within GGG60 chemical composition specifications.

GGG60 Composition Comparison

Comparing GGG60 chemical composition with adjacent ductile iron grades clarifies the material’s position within the ductile iron family:

Element	GGG40	GGG50	GGG60	GGG70
Carbon (C)	3.5-4.0	3.4-3.9	2.5-3.6	2.3-3.4
Silicon (Si)	2.2-2.9	2.0-2.8	1.8-2.8	1.8-2.7
Manganese (Mn)	0.2-0.5	0.3-0.6	0.3-0.7	0.4-0.8
Phosphorus (P)	≤0.06	≤0.08	≤0.08	≤0.08
Sulfur (S)	≤0.03	≤0.025	≤0.025	≤0.02

Higher-strength grades show progressively more controlled composition ranges, particularly for carbon, with increased manganese promoting pearlite formation. The GGG60 composition represents optimal balance between strength and castability suitable for high-load applications.

GGG60 Mechanical Properties

GGG60 mechanical properties include minimum 600 MPa tensile strength, 370 MPa yield strength, 3% elongation, and 180-270 HB hardness, delivering exceptional load-bearing capacity for demanding engineering applications.

The performance characteristics defined by GGG60 mechanical properties determine material suitability for specific engineering applications. Comprehensive understanding of GGG60 material properties enables accurate stress analysis and appropriate safety factors during component design. The GGG60 material specification establishes minimum values ensuring reliable performance across diverse applications.

Tensile Properties

Tensile Strength (Rm): 600-700 MPa (minimum 600 MPa)

Tensile strength represents the primary acceptance criterion for GGG60 material specification. The minimum value of 600 MPa must be achieved when testing separately cast test bars. Typical production material often exceeds the minimum value, with 620-680 MPa common for well-controlled foundry processes.

The tensile strength of ductile iron depends primarily on matrix microstructure and nodule characteristics. Pearlitic matrices provide high strength with reasonable toughness. The predominantly pearlitic structure in GGG60 achieves superior strength levels. The GGG60 chemical composition and cooling rate during solidification control these microstructural features.

Testing procedures follow EN 1563 or ISO 1083 standards. Test specimens are machined from separately cast test bars to ensure consistent testing conditions. The test bar diameter and cooling rate approximate typical casting sections, providing representative GGG60 mechanical properties.

Yield Strength (Rp0.2): 370-470 MPa (minimum 370 MPa)

Yield strength indicates the stress level where permanent deformation begins. GGG60 material exhibits defined yield behavior at minimum 370 MPa, providing predictable performance in structural calculations. Typical yield strength measures 390-450 MPa for predominantly pearlitic grades.

The yield-to-tensile ratio typically ranges from 0.60 to 0.68, indicating controlled ductility reserves after yielding. This characteristic enables limited energy absorption during overload conditions without immediate fracture. Engineering calculations utilize yield strength with appropriate safety factors for component design.

Elongation (A): ≥3% (minimum)

The elongation of GGG60 material reaches minimum 3%, representing moderate ductility compared to lower-strength ductile irons (GGG40: 15%, GGG50: 7%). Elongation values typically range from 3% to 5%, depending on pearlite content and nodule quality. Higher pearlite content produces elongation toward the lower range.

The limited ductility reflects the high-strength orientation of GGG60 material. The predominantly pearlitic matrix provides strength at the expense of elongation. Engineers should specify GGG60 for applications requiring maximum strength and wear resistance rather than impact absorption or extensive plastic deformation capability.

Property	GGG60 Value	Test Method
Tensile Strength (Rm)	≥600 MPa (typical 620-680 MPa)	EN 1563, ISO 1083
Yield Strength (Rp0.2)	≥370 MPa (typical 390-450 MPa)	EN 1563
Elongation (A)	≥3% (typical 3-5%)	EN 1563
Brinell Hardness (HB)	180-270 HB	EN 1563

Hardness Characteristics

Brinell Hardness: 180-270 HB

Hardness measurements provide rapid, non-destructive verification of GGG60 material properties. The Brinell hardness range correlates with predominantly pearlitic matrix microstructure. Lower hardness values (180-210 HB) indicate some ferrite content with slightly enhanced ductility, while higher values (230-270 HB) suggest fully pearlitic material with maximum strength.

Foundries use hardness testing for production quality control. Measurements on production castings or test pieces verify that material meets expected values for the microstructure and GGG60 mechanical properties. Hardness testing requires less time and specimen preparation than tensile testing.

The hardness range provides excellent wear resistance suitable for abrasive environments. Components operating in severe wear conditions benefit from this characteristic. Surface hardening treatments can further enhance wear resistance when required without affecting core strength.

Physical Properties

Density: 7.05-7.15 g/cm³

The density of GGG60 material remains relatively constant regardless of composition variations within specification limits. This consistent density simplifies weight calculations during component design. The density closely approximates carbon steel (7.85 g/cm³), making GGG60 approximately 10% lighter for equivalent volumes.

Weight predictions use the standard density value multiplied by component volume. Accurate density enables precise calculation of component mass for shipping, handling, and dynamic load analysis. The graphite content reduces density compared to steel by replacing denser iron with lighter carbon.

Modulus of Elasticity: 165-175 GPa

The elastic modulus of GGG60 material properties remains consistent at 165-175 GPa, approaching steel’s modulus (200-210 GPa). This relatively high stiffness distinguishes ductile iron from gray iron (90-100 GPa), making GGG60 suitable for applications requiring rigidity.

Engineers must account for the slightly lower modulus versus steel when calculating deflection under load. Ductile iron components deflect somewhat more than equivalent steel parts carrying identical loads. However, the difference remains far less significant than with gray cast iron.

Poisson’s Ratio: 0.27-0.29

Poisson’s ratio for GGG60 material closely matches steel values (0.27-0.30). This property affects stress calculations in multiaxial loading conditions and influences lateral strain during tensile loading. The similarity to steel enables standard calculation methods without special modifications.

Thermal Properties

Thermal Conductivity: 28-33 W/(m·K)

GGG60 material conducts heat less effectively than gray iron (46-50 W/(m·K)) but similarly to other ductile irons. The spheroidal graphite structure provides less thermal conductivity than flake graphite. This characteristic suits applications where moderate heat dissipation suffices without requiring gray iron’s superior conductivity.

Adequate heat conduction reduces thermal gradients and associated thermal stresses. Components subjected to thermal cycling benefit from reasonable conductivity distributing heat more uniformly than low-conductivity materials.

Coefficient of Thermal Expansion: 10.5-11.0 × 10⁻⁶/K

The thermal expansion coefficient of GGG60 mechanical properties matches carbon steel values closely. This compatibility minimizes thermal stress when assembling ductile iron components with steel parts. Similar expansion rates prevent loosening or binding across temperature variations.

The spheroidal graphite provides some dimensional stability by constraining matrix expansion. Ductile iron generally exhibits good dimensional stability under thermal cycling. Components requiring accuracy across temperature ranges benefit from this characteristic.

Wear and Impact Properties

Wear Resistance

GGG60 demonstrates excellent wear resistance compared to lower-grade ductile irons due to high pearlite content and increased hardness. The predominantly pearlitic matrix resists abrasive wear in demanding applications. Wear testing typically shows superior performance compared to GGG40 or GGG50 in abrasive conditions.

The material maintains reasonable wear resistance across temperature ranges, suitable for elevated temperature applications. Applications involving sliding contact, abrasive materials, or erosive conditions benefit from GGG60’s wear characteristics preventing premature component failure.

Impact Resistance

Impact resistance of GGG60 material remains moderate due to limited elongation (3% minimum). The combination of 600 MPa tensile strength with 3% elongation provides controlled energy absorption during dynamic loading. Impact testing typically shows values of 5-12 Joules at room temperature for standard Charpy specimens.

The material maintains reasonable impact resistance at room temperature, though values decline at reduced temperatures. Applications involving severe impact loads should evaluate whether GGG60’s limited ductility suffices, or whether lower-strength grades with higher elongation provide superior performance.

GGG60 Material Specification Standards

GGG60 material specification follows EN 1563 European standard as EN-GJS-600-3, with equivalent designations in ISO, DIN, ASTM, and JIS standards ensuring international manufacturing consistency.

Multiple international standards govern production and testing of this ductile iron, ensuring consistency across manufacturing regions. Understanding applicable GGG60 material specification standards facilitates international sourcing and quality verification.

European Standards

EN 1563:2012 (Current Standard)

The European standard EN 1563 titled “Founding – Spheroidal Graphite Cast Irons” provides comprehensive specifications for ductile iron production and testing. This standard harmonized earlier national standards including DIN 1693 (Germany), BS 2789 (United Kingdom), and NF A32-201 (France). The GGG60 material specification follows requirements established in EN 1563 as grade EN-GJS-600-3.

EN 1563 covers:

• Material designation system and grade classifications
• GGG60 chemical composition guidance ranges
• Mechanical property requirements including test methods
• Test bar casting procedures and dimensions
• Inspection and certification requirements
• Acceptance criteria and dispute resolution

The standard specifies minimum tensile strength, yield strength, and elongation values for various ductile iron grades determined from separately cast test bars. The GGG60 material properties must meet minimum 600 MPa tensile strength, 370 MPa yield strength, and 3% elongation. Hardness ranges provide additional verification of microstructure and properties.

International Standards

ISO 1083:2018 – Spheroidal Graphite Cast Iron Classification

The International Organization for Standardization publishes ISO 1083 covering ductile iron classification and properties. This global standard harmonizes with regional standards including EN 1563. The ISO designation uses similar nomenclature for equivalent material indicating minimum tensile strength and elongation.

ISO 1083 establishes:

• Material property requirements aligned with EN specifications
• Test methods and specimen preparation procedures
• Designation system conventions
• International grade equivalencies

Manufacturing facilities producing for international markets typically reference both EN 1563 and ISO 1083 specifications. The standards align closely, with minor differences in documentation formats. Material produced to EN 1563 specifications generally satisfies ISO 1083 requirements.

Specification Requirements

Mechanical Property Testing

The GGG60 material specification requires tensile testing of separately cast test bars to verify mechanical properties. Standard test bars measure specified diameters with testing frequency depending on production volume and customer requirements. Specimens are machined to gauge dimensions before testing to provide consistent results.

Hardness testing provides supplementary verification without destructive testing requirements. Brinell hardness measurements on production castings or test pieces confirm expected microstructure correlating with tensile properties.

Metallographic Examination

Microstructure evaluation verifies spheroidal graphite morphology and matrix structure meet GGG60 material specification. Polished and etched samples examined under microscope confirm:

• Spheroidal graphite nodule distribution and nodularity (typically ≥80%)
• Pearlitic or predominantly pearlitic matrix appropriate for grade
• Absence of excessive carbides, inclusions, or degenerate graphite
• Appropriate nodule count (typically 150-350 nodules/mm²)

Metallographic examination typically occurs during process qualification and periodic verification. Critical applications may require per-lot microstructure confirmation ensuring consistent quality.

Documentation and Certification

Foundries supply material certificates documenting compliance with GGG60 material specification requirements. Typical certificates include:

• Chemical composition analysis results
• Mechanical property test data (tensile strength, yield strength, elongation)
• Hardness measurements
• Heat identification and traceability
• Compliance statement with applicable standards

Inspection certificates following EN 10204 Type 3.1 or 3.2 formats provide comprehensive quality documentation. These certificates enable customer verification of material properties and compliance.

GGG60 Material Equivalent Grades

GGG60 material equivalent grades include QT600-3 (China GB/T 1348), FCD600 (Japan JIS G5502), ASTM A536 80-60-03 (USA), and ISO 1083 600-3 for international material substitution.

Engineers frequently need to identify GGG60 material equivalent grades across international standards for global sourcing and material substitution. Understanding equivalent designations ensures material compatibility when specifications reference different standards. The GGG60 material equivalent system facilitates international trade and technical communication.

Chinese Standard Equivalent

QT600-3 (GB/T 1348)

The Chinese national standard GB/T 1348 designates equivalent ductile iron as QT600-3. The “QT” abbreviation represents “Qiu Tie” (ductile iron in Chinese), while “600” directly indicates minimum tensile strength in MPa and “3” represents minimum elongation percentage. Chinese foundries produce QT600-3 extensively for heavy machinery, mining equipment, and high-strength automotive components.

The QT600-3 chemical composition and mechanical properties align closely with GGG60 material specification:

• Tensile strength minimum: 600 MPa
• Yield strength minimum: 370 MPa
• Elongation minimum: 3%
• Brinell hardness: 190-270 HB

Chinese automotive manufacturers, mining equipment producers, and heavy machinery companies commonly specify QT600-3. The widespread availability and established production processes make this GGG60 material equivalent readily available from Chinese foundries. Material certificates reference both GB/T 1348 and international equivalent designations.

Japanese Standard Equivalent

FCD600 (JIS G 5502)

Japanese Industrial Standard JIS G 5502 classifies equivalent ductile iron as FCD600. The “FCD” designation abbreviates “Ferrous Casting Ductile” while “600” indicates minimum tensile strength (600 MPa). This standard provides direct equivalence to GGG60 material.

FCD600 specifications include:

• Tensile strength minimum: 600 MPa
• Elongation minimum: 3%
• Predominantly pearlitic matrix microstructure

Japanese automotive industry and heavy machinery manufacturers utilize FCD600 for gear wheels, crankshafts, and high-strength structural components. Japanese foundries maintain rigorous quality control systems supporting precision manufacturing requirements.

American Standard Equivalent

ASTM A536 Grade 80-60-03

The American Society for Testing and Materials specifies ductile iron in ASTM A536 standard. Grade 80-60-03 designation indicates minimum tensile strength of 80 ksi (552 MPa), yield strength of 60 ksi (414 MPa), and elongation of 3%, closely matching GGG60 material specification. This GGG60 material equivalent serves diverse American industrial applications.

ASTM A536 Grade 80-60-03 characteristics:

• Tensile strength minimum: 80 ksi (552 MPa)
• Yield strength minimum: 60 ksi (414 MPa)
• Elongation minimum: 3%
• Hardness typically 197-255 HB

The ASTM designation uses imperial units and specifies slightly lower tensile strength (552 MPa versus 600 MPa). However, many American foundries produce material exceeding minimum requirements, achieving properties equivalent to GGG60. American foundries optimize composition to achieve required properties following ASTM testing procedures.

Other International Equivalents

Italy: GS600-2 (UNI 4544)

Italian standard UNI 4544 designates similar material as GS600-2, following comparable nomenclature conventions. Italian foundries supply GS600-2 castings for machinery and industrial applications with properties equivalent to GGG60 material.

France: FGS600-2 (NF A32-201)

French standards designated this material as FGS600-2 before adopting European harmonized standards. French foundries now primarily reference EN 1563 but may include FGS600-2 designation on legacy documentation.

United Kingdom: 600/7 (BS 2789)

British standard BS 2789 (now superseded by EN 1563) classified this material as 600/7 where “600” represents minimum tensile strength and “7” indicates elongation (though noting actual GGG60 elongation is 3%). UK foundries now use EN-GJS-600-3 designation with BS 2789 occasionally referenced for legacy compatibility.

India: SG600/3 (IS 1865)

Indian standards designate equivalent material as SG600/3 where “SG” represents spheroidal graphite. The properties align with GGG60 material equivalent specifications suitable for industrial machinery and heavy equipment applications.

Australia: 600-3 (AS 1831)

Australian standards reference 600-3 as equivalent designation for ductile iron with properties similar to GGG60 material.

Equivalent Grade Comparison Table

Standard	Designation	Tensile Strength	Yield Strength	Elongation	Primary Region
European (EN 1563)	EN-GJS-600-3	≥600 MPa	≥370 MPa	≥3%	Europe
ISO 1083	ISO 600-3	≥600 MPa	≥370 MPa	≥3%	International
Germany (DIN 1693)	GGG60	≥600 MPa	≥370 MPa	≥3%	Germany
China (GB/T 1348)	QT600-3	≥600 MPa	≥370 MPa	≥3%	China
Japan (JIS G 5502)	FCD600	≥600 MPa	–	≥3%	Japan
USA (ASTM A536)	80-60-03	≥552 MPa (80 ksi)	≥414 MPa (60 ksi)	≥3%	USA
Italy (UNI 4544)	GS600-2	≥600 MPa	≥370 MPa	≥2%	Italy
France (NF A32-201)	FGS600-2	≥600 MPa	≥370 MPa	≥2%	France
UK (BS 2789)	600/7	≥600 MPa	≥370 MPa	≥7% (varies)	UK
India (IS 1865)	SG600/3	≥600 MPa	≥370 MPa	≥3%	India

Material Substitution Considerations

When substituting between GGG60 material equivalent grades from different standards, engineers should verify several critical factors:

Mechanical Property Alignment

Compare minimum tensile strength, yield strength, and elongation requirements across standards. Most GGG60 material equivalent grades specify 600 MPa minimum tensile strength with 3% elongation, providing similar load-bearing characteristics. Verify that all critical properties meet application needs.

Testing methods may differ slightly between standards. EN/ISO use metric test specimens while ASTM uses inch-based dimensions. These testing variations typically produce comparable results within normal material scatter.

Section Size Effects

All ductile iron standards recognize that mechanical properties vary with casting section thickness. Thicker sections cool more slowly, potentially producing different microstructures. GGG60 material specification bases properties on standard test bars representing typical medium-section castings.

When substituting materials, verify that section thickness considerations align across standards. Component design should account for actual section thickness effects on GGG60 mechanical properties to ensure adequate performance.

Primary Applications of GGG60 Cast Iron

GGG60 cast iron applications include heavy-duty machinery components, gear wheels, crankshafts, mining equipment, hydraulic cylinders, and high-strength structural parts requiring exceptional load-bearing capacity.

The balanced combination of high strength, excellent wear resistance, and reasonable toughness makes GGG60 material suitable for demanding industrial applications. Understanding typical applications helps engineers evaluate material appropriateness for specific component requirements.

Automotive and Heavy-Duty Vehicle Components

Crankshafts and Engine Components

Automotive and diesel engine manufacturers utilize GGG60 material for crankshafts, camshafts, and connecting components requiring high strength and wear resistance. The material withstands combustion forces and bearing loads while resisting wear at journal surfaces. The 600 MPa tensile strength enables reliable operation under high mechanical stress.

The casting process creates complex crankshaft geometries with integral counterweights economically compared to forged steel alternatives. GGG60 mechanical properties provide adequate strength for heavy-duty diesel engines while maintaining manufacturing economy. The material’s fatigue resistance supports extended service life expectations.

Heavy-duty truck engines and industrial power units benefit from GGG60’s combination of strength and castability. The material enables complex internal oiling passages and precise journal dimensions through machining operations. Surface hardening of bearing journals further enhances wear resistance.

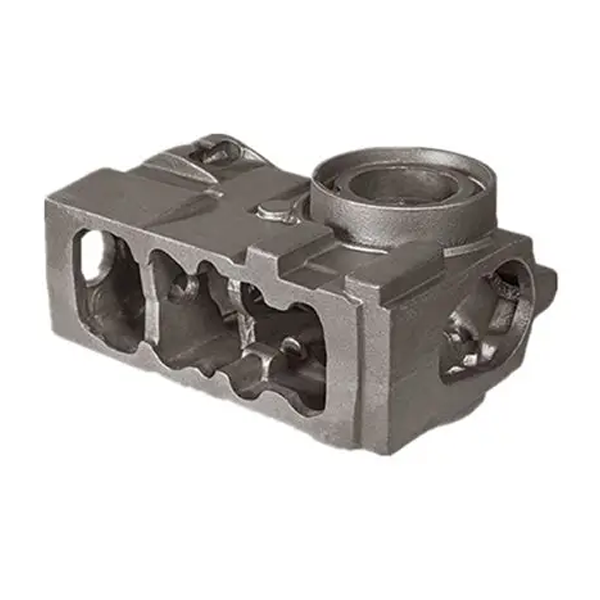

Gear Wheels and Transmission Components

Heavy-duty gearboxes and transmission systems employ GGG60 for gear wheels, ring gears, and drivetrain components requiring high strength and wear resistance. The casting process creates gear blanks with integral hubs and mounting features. The material provides structural rigidity while resisting tooth wear from high contact stresses.

The adequate strength supports heavy torque transmission in industrial and mining equipment. GGG60 composition enables reliable performance across diverse operating conditions including high loads and temperature variations. Manufacturers value cost-effectiveness combined with extended service life.

Gear components require fatigue resistance under cyclic loading. The material demonstrates good fatigue strength suitable for industrial equipment service life expectations. Surface treatments including carburizing or induction hardening enhance tooth surface durability when required.

Mining and Heavy Equipment

Excavator and Loader Components

Mining equipment manufacturers utilize GGG60 material for structural brackets, pivot housings, and high-stress mounting components. The combination of strength and castability suits components subjected to heavy loads and shock conditions. The material absorbs operating stresses while maintaining dimensional stability.

The casting versatility enables complex geometries integrating multiple mounting points and attachment features. GGG60 mechanical properties provide weight efficiency compared to steel fabrications while exceeding lower-grade ductile iron strength requirements. Equipment manufacturers value reliability in demanding mining environments.

Excavator boom connections, loader linkages, and hydraulic mounting brackets employ GGG60 for structural integrity. The material tolerates the stresses of repeated loading cycles better than lower-strength alternatives in demanding applications.

Crusher and Grinding Equipment

Mining and aggregate processing equipment uses GGG60 for crusher jaws, grinding plates, and impact-resistant components. The material withstands abrasive wear while maintaining structural integrity under impact loading. Applications include jaw crusher components, cone crusher parts, and grinding mill components.

The combination of hardness and strength provides extended wear life in abrasive conditions. Surface hardening treatments enhance wear resistance when extreme abrasion occurs. The GGG60 composition delivers reliability in demanding mining and aggregate processing environments.

Hydraulic and Pneumatic Systems

High-Pressure Cylinder Bodies

Hydraulic cylinder bodies and pneumatic cylinders cast from GGG60 material provide structural containment for high-pressure fluids. The casting includes integral mounting features, port connections, and reinforcement ribs. The material withstands internal pressure ratings exceeding those possible with lower-strength ductile irons.

Industrial equipment including construction machinery, material handling systems, and manufacturing equipment employ high-strength ductile iron hydraulic components. The GGG60 mechanical properties balance pressure capability with manufacturing economy for high-duty applications operating at elevated pressures.

Mobile hydraulic equipment benefits from GGG60’s strength-to-weight ratio. The material enables higher pressure ratings without excessive component weight. Pressure ratings typically reach 250-350 bar depending on cylinder design and safety factors.

Pump Housings and Valve Bodies

High-pressure hydraulic pump housings and directional control valve bodies utilize GGG60 material for pressure containment and structural integrity. The casting process creates complex internal porting and external mounting features economically. The material provides pressure ratings suitable for industrial hydraulic systems operating at high pressures.

Machinability enables precision finishing of sealing surfaces and threaded ports despite higher hardness compared to softer grades. The GGG60 composition resists hydraulic fluids and maintains dimensional stability under pressure cycling. Industrial hydraulic power units and mobile equipment commonly specify high-strength ductile iron components.

The material’s strength prevents brittle failure from pressure surges or hydraulic shock conditions. Service life in demanding hydraulic applications often exceeds 15-20 years with proper design and maintenance. Cost-effectiveness makes GGG60 standard for high-pressure hydraulic applications.

Industrial Machinery

Machine Tool Components

Machine tool manufacturers employ GGG60 for structural bases, spindle housings, and precision mounting components requiring high rigidity and vibration damping. The material provides structural stability while maintaining reasonable vibration absorption characteristics. The high modulus of elasticity maintains bearing alignment critical for machining accuracy.

CNC machine bases, milling machine columns, and lathe beds cast from GGG60 material provide rigid mounting for precision components. The casting process creates integrated mounting surfaces and coolant passages economically. Precision machining of bearing bores and mounting surfaces achieves tight tolerances required for machine tool operation.

The material’s thermal stability maintains dimensional accuracy across temperature variations during machining operations. Heavy-duty machine tools benefit from GGG60’s combination of strength and castability enabling complex integrated structures.

Rolling Mill Equipment

Steel rolling mills and metal forming equipment utilize GGG60 for roll housings, bearing supports, and structural components subjected to extreme loads. The material withstands compression forces and maintains dimensional stability under cyclical loading. Applications include roll stands, housing supports, and structural reinforcement.

The high strength enables reduced section thickness compared to lower-grade materials, optimizing component design. GGG60 material properties deliver reliability in demanding mill environments with minimal maintenance requirements. Manufacturers value extended service life reducing equipment downtime.

Agricultural and Construction Equipment

Heavy-Duty Implement Components

Agricultural equipment manufacturers use GGG60 for high-stress implement components including plough frames, cultivator mainframes, and heavy tillage equipment requiring exceptional strength. The material withstands soil forces and impact loads from obstacles while maintaining structural integrity.

The casting process creates complex frame geometries economically compared to welded steel fabrications. GGG60 mechanical properties provide adequate strength for severe field conditions while the reasonable toughness prevents catastrophic failure from overload. Manufacturing costs remain competitive for agricultural equipment producers.

Field conditions subject equipment to unpredictable stress concentrations. The material’s combination of strength and toughness reduces downtime from component failure during critical operating seasons. Farmers value reliability that GGG60 material properties deliver in demanding agricultural applications.

Concrete Mixing and Pumping Equipment

Construction equipment including concrete mixers, pump housings, and material handling components employ GGG60 for wear resistance and structural integrity. The material withstands abrasive concrete aggregate while maintaining pressure containment capability. Applications include mixer drum hubs, pump cylinder bodies, and structural support components.

The wear resistance extends component service life in abrasive environments. The adequate strength supports structural loads during concrete handling operations. Construction equipment manufacturers specify GGG60 for critical components requiring both strength and abrasion resistance.

Wind Turbine Components

Hub Castings and Structural Components

Wind turbine manufacturers utilize GGG60 material for hub castings, main bearing housings, and structural components requiring high strength-to-weight ratio. The large-scale casting capability produces integrated structures reducing assembly complexity. The material withstands aerodynamic loads and operational stresses throughout turbine service life.

The strength enables optimized designs minimizing component weight while meeting structural requirements. GGG60 material properties provide reliability in demanding environmental conditions including temperature variations and cyclic loading. Renewable energy equipment manufacturers value extended service life exceeding 20 years.

Manufacturing GGG60 Components

Manufacturing GGG60 components requires precise metallurgical control including optimized base iron chemistry, controlled magnesium treatment, proper inoculation, and systematic quality verification ensuring consistent mechanical properties.

Successful production of GGG60 components requires sophisticated metallurgical control and comprehensive quality assurance. Professional foundries implement systematic procedures ensuring consistent GGG60 material properties across production.

Melting and Magnesium Treatment

Base Iron Preparation

Modern foundries carefully select raw materials including pig iron, steel scrap, and foundry returns to achieve target base iron chemistry before magnesium treatment. The base iron composition must provide appropriate carbon and silicon levels supporting high-strength pearlitic matrix development after treatment.

Electric induction furnaces provide precise temperature and composition control for GGG60 production. Melting temperatures typically reach 1480-1520°C ensuring complete dissolution and homogenization. Spectrographic analysis verifies base iron composition before proceeding to magnesium treatment.

Lower carbon content compared to softer grades requires careful charge calculation. Foundries balance graphitizing elements (carbon, silicon) against pearlite-promoting elements (manganese) achieving target microstructure. Base iron chemistry directly influences final GGG60 mechanical properties.

Magnesium Treatment Process

Magnesium treatment represents the critical step transforming gray iron into ductile iron. Foundries employ various treatment methods including ladle treatment, tundish methods, or sandwich processes. The violent reaction between magnesium and molten iron requires careful process control ensuring operator safety and consistent results.

Treatment typically uses ferrosilicon-magnesium alloys containing 5-10% magnesium. Addition quantities calculate based on sulfur content and desired residual magnesium (typically 0.035-0.050%). The GGG60 chemical composition requires precise residual magnesium maintaining spheroidal graphite formation throughout the casting.

Temperature control during treatment ensures proper reaction kinetics. Excessive temperature causes violent reactions with magnesium loss and excessive dross formation. Insufficient temperature results in incomplete reactions with inadequate nodularization. Foundries maintain treatment temperatures around 1450-1480°C for optimal results.

Inoculation

Inoculation follows magnesium treatment, introducing nucleating agents promoting uniform nodule distribution during solidification. Ferrosilicon-based inoculants added to ladles or during pouring ensure fine, evenly distributed graphite nodules. Proper inoculation prevents carbide formation and optimizes GGG60 mechanical properties.

Multiple inoculation stages (ladle and mold inoculation) provide most effective results. Late inoculation just before pouring maximizes effectiveness as inoculation effects fade over time. Foundries must pour within 10-15 minutes after treatment for consistent nodularization and strength development.

Inoculant selection influences nodule count and microstructure development. Higher nodule counts (200-350/mm²) promote finer pearlite spacing enhancing strength. GGG60 production requires careful inoculation optimization achieving target mechanical properties consistently.

Casting and Solidification

Mold Design Considerations

Mold design significantly influences GGG60 material properties through cooling rate control. Thicker sections cool more slowly, potentially reducing strength compared to standard test bars. Design engineers account for section thickness effects through appropriate safety factors or section-specific testing.

Gating system design ensures turbulent-free filling preventing oxidation and inclusions. Feeders provide adequate molten metal compensating for solidification shrinkage. Proper feeding prevents shrinkage porosity compromising mechanical properties.

Sand mold materials influence surface quality and dimensional accuracy. Green sand molding provides economy for medium-volume production. Resin-bonded sand systems deliver superior surface finish and dimensional accuracy for precision components.

Cooling Rate Management

Cooling rate directly affects matrix microstructure development in GGG60 material. Moderate cooling rates promote predominantly pearlitic structure achieving 600 MPa tensile strength. Excessive cooling rates may increase hardness beyond specification. Very slow cooling potentially reduces pearlite content lowering strength.

Foundries optimize cooling through mold design, pouring temperature control, and section thickness management. Component geometry influences local cooling rates requiring design consideration. Uniform cooling produces consistent mechanical properties throughout castings.

Heat Treatment Options

Stress Relief Annealing

Components may receive stress relief annealing at 500-600°C to remove residual stresses from casting without significantly altering microstructure or mechanical properties. This treatment improves dimensional stability and reduces distortion risk during subsequent machining operations.

Stress relief particularly benefits complex geometries or components requiring tight dimensional tolerances. The treatment cycle typically involves heating to temperature, holding 1-2 hours, and slow cooling. GGG60 mechanical properties remain essentially unchanged after proper stress relief.

Normalizing

Normalizing at 860-920°C followed by air cooling refines microstructure and homogenizes properties. This treatment benefits thick-section castings where cooling rate variations occur. Normalizing produces uniform predominantly pearlitic matrix with consistent strength throughout the component.

The treatment enhances mechanical property uniformity in complex castings. Normalized GGG60 material typically achieves tensile strength toward the upper specification range (640-680 MPa) with improved consistency.

Surface Hardening

Induction or flame hardening of selected surfaces increases wear resistance significantly without affecting core properties. Surface hardening creates hard outer layers (typically 500-600 HV) while maintaining tough cores. This treatment benefits wear surfaces on gears, slides, and ground-engaging equipment.

Induction hardening provides precise control over hardened depth and pattern. Gear teeth, bearing journals, and wear surfaces receive localized hardening maintaining core ductility. The GGG60 composition responds well to surface hardening treatments.

Quality Control Testing

Chemical Analysis

Spectroscopic analysis verifies GGG60 composition after treatment before pouring each production heat. Modern optical emission spectrometers provide rapid analysis of all major and minor elements including residual magnesium content. Results must confirm proper treatment effectiveness before metal receives approval for casting.

Analysis confirms carbon, silicon, manganese, phosphorus, sulfur, and residual magnesium fall within specification ranges. Out-of-specification chemistry receives correction through additions or dilution before casting. Systematic analysis ensures consistent GGG60 chemical composition across production.

Metallographic Examination

Microscopic examination of polished and unetched samples verifies nodule characteristics. Trained metallographers evaluate nodularity percentage (typically ≥80% required), nodule count (150-350/mm² typical), and nodule size distribution. Etched samples reveal matrix structure confirming predominantly pearlitic microstructure appropriate for GGG60 material properties.

Image analysis systems provide objective quantification of microstructural features. Consistent nodule characteristics across production heats indicate proper process control. Variations signal need for treatment parameter adjustments or raw material changes.

Pearlite content measurement confirms adequate matrix structure for strength requirements. GGG60 requires predominantly pearlitic matrix (typically 80-95% pearlite) achieving 600 MPa tensile strength. Excessive ferrite content reduces strength below specification.

Mechanical Testing

Tensile testing of separately cast test bars verifies GGG60 material properties meet specification requirements. Test bars cast under controlled conditions provide representative mechanical properties. Universal testing machines determine tensile strength, yield strength, and elongation confirming compliance with minimum values.

Test bar dimensions and casting procedures follow standard specifications. Typical test bar diameters range from 25-30mm representing medium-section castings. Testing frequency depends on production volume and customer requirements, typically each heat or production lot.

Hardness testing provides supplementary verification using Brinell methods. Hardness measurements on test pieces or production castings confirm expected values. The 180-270 HB range indicates proper microstructure development. Correlation between hardness and tensile properties enables rapid quality verification.

Selecting a Ductile Iron Casting Foundry

Selecting a ductile iron casting foundry requires evaluating technical expertise in GGG60 production, metallurgical capabilities, quality system certification, and demonstrated experience manufacturing high-strength ductile iron components.

Component quality depends significantly on foundry expertise and manufacturing capabilities. Engineers should evaluate multiple factors when selecting partners for GGG60 production.

Technical Capability Assessment

Ductile Iron Expertise

Foundries specializing in ductile iron demonstrate deep understanding of GGG60 composition control, magnesium treatment processes, and microstructure development. They maintain laboratory facilities equipped for chemical analysis, metallographic examination, and mechanical testing. Experienced metallurgists oversee treatment operations and troubleshoot quality issues.

The foundry should provide detailed material certifications including chemical composition, mechanical test results, and microstructure verification. Metallurgical support during design optimization helps engineers select appropriate materials and optimize component geometry for manufacturing economy and performance.

High-strength grades like GGG60 require more sophisticated process control than softer grades. Verify that foundry personnel understand pearlite promotion, cooling rate management, and quality verification specific to high-strength ductile irons.

Process Capabilities

Evaluate the foundry’s casting processes including molding methods, core production, and pouring systems. Sand casting remains most common for GGG60 components, with green sand, resin-bonded sand, or shell molding available. Different processes suit specific size ranges, production volumes, and quality requirements.

Heat treatment facilities including stress relief, normalizing, and surface hardening equipment provide complete manufacturing solutions. Integrated machining capabilities allow delivery of finished components rather than rough castings. This integration reduces supplier management complexity and improves delivery coordination.

Large-scale casting capability benefits wind turbine components and heavy equipment applications. Verify foundry equipment capacity matches component size and weight requirements. Production volume capability should align with project demand maintaining consistent quality.

Quality System Verification

ISO Certification

Professional foundries maintain ISO 9001:2015 quality management certification at minimum. Advanced foundries pursue additional certifications including IATF 16949 for automotive supply or ISO 14001 for environmental management. Certification demonstrates systematic quality management supporting consistent GGG60 material properties.

Audit reports and certification status verification confirm active quality system operation. Third-party certification provides independent verification of quality management effectiveness. Foundries supplying critical applications should maintain current certification without lapses.

Production Sample Evaluation

Request sample castings demonstrating capability to produce components meeting GGG60 material specification. Examine samples for surface quality, dimensional accuracy, and absence of visible casting defects. Review accompanying material certificates confirming mechanical properties and chemical composition meet requirements.

Metallographic examination of samples verifies nodule quality and matrix structure. Hardness testing confirms appropriate heat treatment response. Dimensional inspection validates manufacturing capability meeting tolerance requirements.

Initial sample approval establishes baseline quality expectations. Production part approval process (PPAP) documentation for automotive applications provides comprehensive quality verification including dimensional inspection, material testing, and process capability studies.

Experience and References

Industry-Specific Experience

Evaluate foundry experience in relevant industry applications. Foundries supplying automotive, mining, or wind energy industries demonstrate capability meeting demanding quality requirements. Request reference customers and application examples demonstrating successful GGG60 component production.

Technical publications, case studies, or application examples indicate foundry expertise and commitment to customer success. Foundries actively developing application knowledge provide superior technical support during design and manufacturing phases.

Engineering Support

Technical support during design development optimizes component manufacturability and performance. Foundries providing simulation capabilities (casting simulation, finite element analysis) help identify potential manufacturing issues before tooling investment. Engineering collaboration reduces development time and improves first-article success rates.

Design for manufacturing guidance optimizes section thickness, gating location, and core design. Foundry engineers familiar with GGG60 material properties provide valuable input during component development ensuring successful production.

For engineers seeking a reliable ductile iron casting foundry partner with proven expertise in GGG60 production, SHENRGONG delivers specialized capabilities in high-strength ductile iron manufacturing with comprehensive quality assurance. The foundry maintains ISO certification and operates advanced metallurgical laboratories ensuring consistent GGG60 material properties and reliable component quality for demanding industrial applications.

Conclusion

GGG60 represents a high-strength ductile iron grade offering exceptional 600 MPa tensile strength with controlled 3% elongation for demanding applications requiring maximum load-bearing capacity. The predominantly pearlitic microstructure created through controlled magnesium treatment and optimized cooling provides superior strength and wear resistance compared to lower-grade ductile irons while maintaining reasonable castability and machinability. Understanding GGG60 chemical composition, GGG60 mechanical properties, and GGG60 material equivalent grades enables engineers to optimize component design across international projects. Success depends on partnering with experienced ductile iron casting foundries maintaining ISO certification and rigorous metallurgical control for consistent GGG60 material quality.

Frequently Asked Questions (FAQ)

What is GGG60 material used for?

GGG60 material is primarily used for high-strength components including gear wheels, crankshafts, heavy-duty machinery parts, mining equipment, high-pressure hydraulic cylinders, and wind turbine hub castings. The combination of 600 MPa tensile strength with reasonable wear resistance makes it ideal for applications requiring maximum load-bearing capacity and durability in demanding industrial environments where lower-strength grades would be insufficient.

What is the chemical composition of GGG60?

The GGG60 chemical composition includes carbon 2.5-3.6%, silicon 1.8-2.8%, manganese 0.3-0.7%, with residual magnesium 0.02-0.05% after treatment. Phosphorus content remains below 0.08% maximum and sulfur below 0.025% maximum. The magnesium treatment is critical for creating spheroidal graphite structure that distinguishes ductile iron from gray iron. The composition promotes predominantly pearlitic matrix achieving 600 MPa tensile strength.

What are GGG60 equivalent grades internationally?

GGG60 material equivalent grades include QT600-3 in China (GB/T 1348), FCD600 in Japan (JIS G 5502), ASTM A536 Grade 80-60-03 in USA, EN-GJS-600-3 in Europe (EN 1563), and ISO 1083 Grade 600-3 internationally. These equivalent materials provide similar mechanical properties with minimum 600 MPa tensile strength, 370 MPa yield strength, and 3% elongation suitable for global sourcing and material substitution in high-strength applications.

What are the mechanical properties of GGG60?

GGG60 mechanical properties include minimum tensile strength 600 MPa (typical 620-680 MPa), minimum yield strength 370 MPa (typical 390-450 MPa), minimum elongation 3% (typical 3-5%), and Brinell hardness 180-270 HB. The material exhibits elastic modulus 165-175 GPa, density 7.05-7.15 g/cm³, and thermal conductivity 28-33 W/(m·K). The predominantly pearlitic matrix provides excellent wear resistance and structural strength for demanding applications.

How does GGG60 compare to GGG40 or GGG50?

GGG60 material provides significantly superior tensile strength (600 MPa) compared to GGG40 (400 MPa) or GGG50 (500 MPa), making it suitable for higher-stress applications. However, GGG60 offers reduced elongation (3% minimum) versus GGG40 (15% minimum) or GGG50 (7% minimum). The predominantly pearlitic matrix in GGG60 provides excellent wear resistance and hardness (180-270 HB) exceeding softer grades. Choose GGG60 for maximum strength applications; select GGG40 or GGG50 when higher ductility is required.

Can GGG60 be heat treated?

Yes, GGG60 material responds to various heat treatments. Stress relief annealing at 500-600°C removes residual stresses without changing mechanical properties. Normalizing at 860-920°C followed by air cooling refines microstructure and enhances property uniformity, often achieving tensile strength of 640-680 MPa. Surface hardening through induction or flame hardening increases wear resistance to 500-600 HV while maintaining tough cores. Heat treatment selection depends on application requirements for strength, wear resistance, or dimensional stability.

What is the difference between GGG60 and GGG70?

GGG60 provides 600 MPa tensile strength with 3% minimum elongation, while GGG70 offers higher 700 MPa tensile strength but reduced 2% minimum elongation. GGG70 contains more pearlite refinement or may include alloying elements increasing strength beyond GGG60. Applications requiring maximum tensile strength specify GGG70. Components benefiting from slightly enhanced ductility while maintaining high strength suit GGG60. Both grades provide excellent wear resistance, with GGG70 offering marginally superior hardness.

How is GGG60 manufactured?

GGG60 material production involves melting base iron in induction furnaces at 1480-1520°C, followed by critical magnesium treatment using ferrosilicon-magnesium alloys to create spheroidal graphite structure. The treatment requires precise control maintaining residual magnesium at 0.035-0.050%. After treatment, inoculation with ferrosilicon-based materials promotes uniform nodule distribution. The metal is poured into sand molds where controlled cooling develops the predominantly pearlitic matrix. Quality control includes spectroscopic analysis, metallographic examination verifying nodularity ≥80% and pearlite content, and mechanical testing per EN 1563 specifications.
