EN-GJL-300 is a widely used gray cast iron grade that plays a critical role in modern manufacturing. Understanding its technical specifications, international equivalents, and mechanical properties helps engineers make informed material selection decisions for various industrial applications.
Key Takeaways
- EN-GJL-300 is a European standard gray cast iron with minimum 300 MPa tensile strength, conforming to EN 1561 standard
- International equivalents include ASTM A48 Class 45 (USA), DIN 1691 GG30 (Germany), JIS FC300 (Japan), and GB 9439 HT300 (China)
- Chemical composition: 2.95-3.20% Carbon, 2.1-2.4% Silicon, 0.55-0.75% Manganese
- Mechanical properties: 300-350 MPa tensile strength, 190-240 HB hardness, compressive strength 3-4x higher than tensile
- Primary applications: Automotive engine blocks, machine tool beds, hydraulic components, pump housings, valve bodies
- Key advantages: Excellent machinability, superior vibration damping, good thermal conductivity, cost-effective production

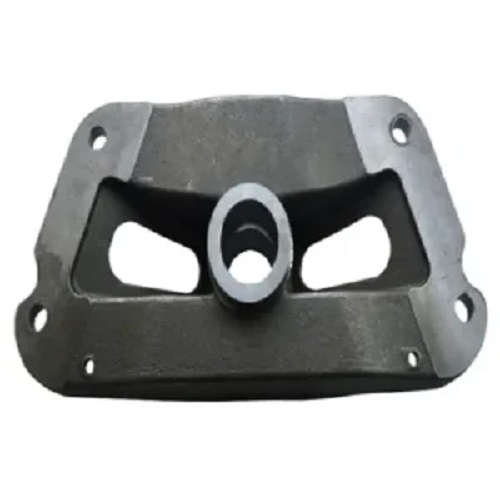

What is EN-GJL-300?
EN-GJL-300 is a European standard gray cast iron grade with a minimum tensile strength of 300 MPa, characterized by excellent machinability and damping properties.
EN-GJL-300 belongs to the gray cast iron family defined by European Standard EN 1561. The designation “GJL” stands for “gray cast iron with lamellar graphite,” where graphite appears in flake form throughout the iron matrix. The number “300” directly indicates its minimum tensile strength requirement of 300 MPa (N/mm²).
This material contains approximately 3.0-3.4% carbon and 1.8-2.3% silicon. During solidification, carbon precipitates as graphite flakes, creating the characteristic gray appearance on fracture surfaces. These graphite flakes provide several functional advantages: they act as built-in lubricants during machining operations, absorb vibrations effectively, and create stress-relief points that enhance machinability while reducing brittleness compared to white cast iron.
Gray cast iron has been used in engineering for over 150 years due to its favorable combination of properties and cost-effectiveness. EN-GJL-300 represents a medium-strength grade suitable for components experiencing moderate mechanical loads while requiring excellent castability and machinability.
EN-GJL-300 Equivalent Standards
The international equivalents for EN-GJL-300 include ASTM A48 Class 45, DIN 1691 GG30, JIS FC300, and GB 9439 HT300.
Understanding material equivalents across different national standards is essential for global sourcing and international engineering projects. Here are the key EN-GJL-300 equivalent grades:
| Standard System | Equivalent Grade | Region |
|---|---|---|
| EN 1561 | EN-GJL-300 / EN-JL1050 | Europe |
| ASTM | A48 Class 45 | United States |
| DIN | 1691 GG30 | Germany |
| BS | 1452 Grade 300 | United Kingdom |
| JIS | G5501 FC300 | Japan |
| GB | 9439 HT300 | China |
| ISO | 185 Grade 300 | International |
| AFNOR | NFA32-101 FGL300 | France |
| GOST | 1412 SCh30 | Russia |
Important Note: While these grades are generally equivalent, minor variations in chemical composition ranges and testing methods may exist between standards. Engineers should verify specific requirements with suppliers when substituting between standards, especially for critical applications.
The European EN 1561 standard replaced older national standards like DIN 1691 and BS 1452, unifying specifications across EU member states. The American equivalent ASTM A48 Class 45 uses a different designation system where “45” represents tensile strength in ksi (45 ksi ≈ 310 MPa).
EN-GJL-300 Chemical Composition
EN-GJL-300 material contains approximately 2.95-3.20% carbon, 2.1-2.4% silicon, 0.55-0.75% manganese, with controlled sulfur and phosphorus levels.
The chemical composition directly influences casting properties, microstructure formation, and final mechanical performance:
| Element | Typical Range (%) | Function |
|---|---|---|
| Carbon (C) | 2.95-3.20 | Forms graphite flakes; determines strength |
| Silicon (Si) | 2.1-2.4 | Promotes graphitization; improves fluidity |
| Manganese (Mn) | 0.55-0.75 | Increases strength and hardness |
| Phosphorus (P) | 0.04-0.2 | Improves fluidity; can reduce ductility |
| Sulfur (S) | 0.04-0.12 | Controls graphite morphology |
Carbon: High carbon content is essential for graphite formation. The carbon equivalent (CE) value, calculated as CE = C% + Si%/3, typically ranges from 3.8-4.2 for EN-GJL-300.
Silicon: This element promotes the precipitation of carbon as graphite rather than as carbides. Higher silicon content improves casting fluidity and machinability but may reduce strength if excessive.
Manganese: Contributes to matrix strengthening by promoting pearlite formation. The manganese-to-sulfur ratio affects graphite shape and distribution.
Phosphorus: In controlled amounts, phosphorus improves castability by increasing fluidity. However, it forms hard phosphide compounds (steadite) that can reduce toughness.
Sulfur: Works with manganese to control graphite nucleation. The MnS compounds formed during solidification serve as nucleation sites for graphite flakes.
Foundries maintain precise control over these elements to achieve consistent casting quality and mechanical properties. The actual composition may vary within specified ranges based on section thickness requirements and specific application demands.
EN-GJL-300 Mechanical Properties
EN-GJL-300 mechanical properties include tensile strength of 300 MPa minimum, Brinell hardness of 190-240 HB, and compressive strength approximately 3-4 times higher than tensile strength.
Tensile Strength
- Minimum: 300 MPa (N/mm²)
- Typical: 300-350 MPa
- Test standard: Separately cast test bars, 30mm diameter
The tensile strength represents the material’s resistance to pulling forces. Unlike ductile materials, gray cast iron exhibits little plastic deformation before fracture, with elongation typically below 0.8%.
Compressive Strength
- Typical: 900-1200 MPa
- Ratio to tensile: 3-4:1
Gray cast iron excels in compressive loading conditions. The graphite flakes have minimal effect under compression, allowing the metallic matrix to carry loads effectively. This makes EN-GJL-300 material ideal for machine bases, columns, and components subjected to compressive stresses.
Hardness
- Range: 190-240 HB (Brinell Hardness)
- Typical: 210-230 HB
Hardness correlates with wear resistance and machining characteristics. The specified range provides adequate wear resistance while maintaining excellent machinability. Thinner sections typically exhibit higher hardness due to faster cooling rates.
Modulus of Elasticity
- Typical: 100-120 GPa
- Application: Lower than steel; requires consideration in deflection-critical designs
Physical Properties
| Property | Value | Units |
|---|---|---|
| Density | 7.1-7.3 | g/cm³ |
| Melting Point | 1150-1200 | °C |
| Thermal Conductivity | 46-50 | W/(m·K) |
| Coefficient of Thermal Expansion | 10-12 | 10⁻⁶/K |
| Specific Heat Capacity | 540-560 | J/(kg·K) |
Thermal Conductivity: EN-GJL-300 offers excellent heat dissipation, making it suitable for engine blocks, brake components, and heat exchangers. Its thermal conductivity is approximately 3 times higher than carbon steel.
Damping Capacity: The graphite flakes act as vibration absorbers, providing superior damping characteristics compared to steel. This makes EN-GJL-300 ideal for machine tool bases and precision equipment foundations where vibration control is critical.
Effect of Section Thickness
Mechanical properties vary with section thickness due to differences in cooling rates:
| Section Thickness | Tensile Strength | Hardness |
|---|---|---|
| < 20 mm | 320-350 MPa | 220-240 HB |
| 20-40 mm | 300-330 MPa | 200-230 HB |
| 40-80 mm | 280-310 MPa | 190-220 HB |
Thicker sections cool more slowly, allowing more time for graphite flake coarsening and resulting in slightly lower mechanical properties.

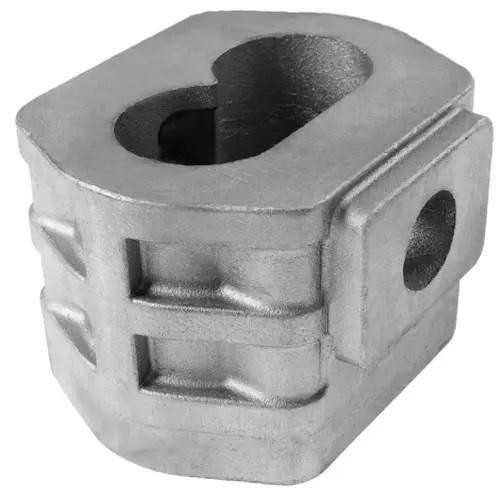

Applications of EN-GJL-300
EN-GJL-300 is widely used in automotive engine blocks, machine tool structures, pump housings, valve bodies, and industrial equipment components requiring moderate strength with excellent machinability.
Automotive Industry
- Engine components: Cylinder blocks, cylinder heads, manifolds
- Brake systems: Brake drums, brake discs
- Transmission parts: Housings, covers
- Performance advantages: Excellent thermal conductivity for heat dissipation, superior damping reduces NVH (noise, vibration, harshness)
Machine Tool Industry
- Structural components: Machine beds, columns, bases
- Precision equipment: Lathe beds, milling machine frames
- Critical benefits: High stiffness-to-weight ratio, exceptional vibration damping maintains dimensional stability during machining operations
Hydraulic and Pneumatic Systems
- Applications: Pump bodies, valve housings, hydraulic cylinders, manifolds
- Key properties: Pressure-tight castings, excellent machinability for precise internal passages, good corrosion resistance in oil environments
Industrial Equipment
- Heavy machinery: Gearbox housings, bearing pedestals, support structures
- Agricultural equipment: Tractor components, implement housings
- Construction machinery: Counterweights, structural supports
Power Generation
- Applications: Turbine casings, bearing housings, generator components
- Advantages: Thermal stability, vibration damping, cost-effectiveness for large castings
The versatility of EN-GJL-300 stems from its balanced properties: adequate strength for moderate loads, outstanding machinability reducing manufacturing costs, excellent castability for complex shapes, and superior damping characteristics for noise and vibration control.
Design Considerations for EN-GJL-300
When designing components with EN-GJL-300 material, engineers should consider:
Stress Concentrations: Gray cast iron is notch-sensitive. Avoid sharp corners, sudden section changes, and stress concentrations. Use generous fillet radii (minimum R = 3-5mm) at section transitions.
Wall Thickness: Maintain uniform wall thickness where possible (typically 6-40mm). Avoid thick sections that may develop shrinkage defects. Design ribs and stiffeners for adequate strength without excessive mass.
Machining Allowances: Provide adequate machining allowances (typically 3-8mm depending on casting size) for finishing operations. EN-GJL-300’s excellent machinability allows economical finishing.
Load Direction: Design to maximize compressive loading rather than tensile loading where possible, capitalizing on gray iron’s superior compressive strength.
Assembly Considerations: Avoid welding when possible; if required, use specialized procedures. Prefer mechanical fastening methods. Design adequate boss thickness around bolt holes (minimum 1.5x bolt diameter).
Quality Control and Testing
Ensuring consistent EN-GJL-300 mechanical properties requires comprehensive quality control:
Chemical Analysis: Spectrometric analysis verifies composition compliance. Performed on each heat of molten metal.
Tensile Testing: Separately cast test bars (typically 30mm diameter) are machined and tested to verify minimum 300 MPa tensile strength.
Hardness Testing: Brinell hardness testing on castings or test bars confirms 190-240 HB range.
Metallographic Examination: Microscopic analysis evaluates graphite flake size, distribution, and matrix structure (typically pearlitic with some ferrite).
Non-Destructive Testing: For critical applications, ultrasonic testing, radiographic inspection, or magnetic particle testing detects internal defects.
Dimensional Inspection: CMM (Coordinate Measuring Machine) verification ensures castings meet drawing tolerances.
EN-GJL-300 vs. Other Gray Iron Grades
Understanding grade comparisons helps optimize material selection:
| Property | EN-GJL-250 | EN-GJL-300 | EN-GJL-350 |
|---|---|---|---|
| Tensile Strength (MPa) | 250 min | 300 min | 350 min |
| Hardness (HB) | 170-220 | 190-240 | 210-260 |
| Typical Applications | Light-duty components | General engineering | Heavy-duty applications |
| Relative Cost | Lower | Medium | Higher |
| Machinability | Excellent | Excellent | Very Good |
EN-GJL-250: Suitable for lightly loaded components where maximum machinability and economy are priorities. Common in decorative or low-stress applications.
EN-GJL-300: Optimal balance of mechanical properties, machinability, and cost for general engineering applications. Most widely specified gray iron grade.
EN-GJL-350: Higher strength for demanding applications but with slightly reduced machinability and higher material cost. Used where EN-GJL-300 strength is insufficient.
Selection depends on specific load requirements, operating conditions, production volume, and economic considerations. EN-GJL-300 represents the most versatile choice for moderate-strength applications.
Manufacturing Process
EN-GJL-300 production involves:
Melting: Cupola furnace or induction furnace melting of pig iron, steel scrap, and alloying elements. Temperature: 1450-1500°C.
Chemical Adjustment: Precise composition control through alloy additions and inoculation with ferrosilicon to promote graphite formation.
Molding: Green sand molding (most common), resin-bonded sand, or other molding processes depending on complexity and production volume.
Pouring: Controlled pouring temperature (1350-1400°C) and pouring rate to prevent defects.
Solidification: Cooling rate management influences microstructure and mechanical properties.
Shakeout and Cleaning: Removing castings from molds, eliminating sand, and cutting off gating systems.
Heat Treatment (optional): Stress relief annealing (500-600°C) may be performed for critical components or after welding repairs.
Machining: Finishing operations to achieve final dimensions and surface finish specifications.
Why Choose SHENGRONG for EN-GJL-300 Castings
When sourcing EN-GJL-300 components, selecting an experienced gray iron casting foundry ensures quality, reliability, and technical support. SHENGRONG specializes in precision gray cast iron production with advanced equipment and comprehensive quality control systems. With decades of expertise in producing EN-GJL-300 castings for diverse industries, SHENGRONG delivers components that meet exacting technical specifications and performance requirements for demanding engineering applications.
Conclusion
EN-GJL-300 remains a cornerstone material in modern manufacturing, offering an optimal balance of mechanical properties, machinability, and economic value. Its 300 MPa minimum tensile strength, excellent damping characteristics, and superior castability make it suitable for applications ranging from automotive components to heavy industrial equipment. Understanding EN-GJL-300 equivalent grades, chemical composition, and mechanical properties enables engineers to specify this versatile material confidently for their designs. Whether for machine tool structures, hydraulic components, or automotive applications, EN-GJL-300 material provides proven performance backed by decades of successful industrial use.
Frequently Asked Questions (FAQ)
What is EN-GJL-300 material?
EN-GJL-300 is a European standard gray cast iron grade with minimum 300 MPa tensile strength, characterized by graphite flakes in a metallic matrix. It offers excellent machinability, superior vibration damping, and good thermal conductivity for general engineering applications.
What is the EN-GJL-300 equivalent in ASTM standard?
The ASTM equivalent is A48 Class 45, where “45” represents 45 ksi (approximately 310 MPa) tensile strength. Both grades deliver comparable mechanical properties and performance for similar applications.
What are the main mechanical properties of EN-GJL-300?
EN-GJL-300 mechanical properties include: minimum tensile strength 300 MPa, Brinell hardness 190-240 HB, compressive strength 900-1200 MPa (3-4x tensile), modulus of elasticity 100-120 GPa, and density 7.1-7.3 g/cm³.
What is the chemical composition of EN-GJL-300?
EN-GJL-300 material contains approximately 2.95-3.20% Carbon, 2.1-2.4% Silicon, 0.55-0.75% Manganese, 0.04-0.2% Phosphorus, and 0.04-0.12% Sulfur. The high carbon and silicon content promotes graphite flake formation.
What are typical applications for EN-GJL-300?
EN-GJL-300 is used in automotive engine blocks and brake components, machine tool beds and frames, hydraulic cylinders and pump housings, valve bodies, gearbox housings, and industrial machinery components requiring moderate strength with excellent damping.
How does EN-GJL-300 compare to EN-GJL-250 and EN-GJL-350?
EN-GJL-250 offers lower strength (250 MPa) for light-duty applications. EN-GJL-300 provides balanced properties for general engineering. EN-GJL-350 delivers higher strength (350 MPa) for demanding applications but with slightly reduced machinability.
What are the advantages of EN-GJL-300?
Key advantages include exceptional machinability (reducing manufacturing costs), superior vibration damping (3-4x better than steel), excellent thermal conductivity (3x higher than steel), high compressive strength, cost-effective production, and pressure-tight casting capability.
Can EN-GJL-300 be heat treated?
EN-GJL-300 is typically used in as-cast condition. Stress relief annealing (500-600°C) may be performed for critical components or after welding repairs. Surface hardening treatments can improve wear resistance for specific applications.
